Overview

A third-person open-world action game in UE5, inspired by Ghost of Tsushima / Ghost of Yōtei. All systems are Blueprint-only to keep the accompanying tutorial series accessible, while still following real production patterns used in shipped titles.

Project overview - replace with a screenshot of the current in-editor state

System Status

Character Movement

✓ Done

Health System

✓ Done

Interaction System

✓ Done

Quest Director

✓ Done

Quest UI

✓ Done

Dialogue System

✓ Done

Combat

- Planned

Enemy AI

- Planned

Ally Recruitment

- Planned

Devlog Video

▶ Devlog video - paste your YouTube embed ID here

Project devlog - overall progress, architecture decisions, and lessons learned

Folder Structure

Content/ ├── _Core/ │ ├── GameMode/ BP_YoteiGameMode, BP_PlayerController │ ├── Player/ BP_PlayerCharacter │ └── GameInstance/ BP_YoteiGameInstance ├── Systems/ │ ├── Health/ BP_HealthComponent │ ├── Interaction/ BPI_Interactable, BP_InteractionComponent │ ├── Quest/ BP_QuestManager (subsystem), DT_Quests │ ├── Dialogue/ BP_DialogueManager, DT_Dialogue │ └── UI/ WBP_HealthBar, WBP_InteractionPrompt, │ WBP_PauseMenu, WBP_QuestTab └── Content/ ├── Maps/ L_Foundation └── Test/ BP_TestInteractable, BP_TestNPC

Tech Stack

Layer	Tool	Notes
Engine	Unreal Engine 5.7	Blank template, no Starter Content
Scripting	Blueprints	100% BP - no C++
Input	Enhanced Input	IMC_Default + individual IA_ assets
Data	Data Tables + JSON import	One file for all quests, one for dialogue rows
Persistence	Game Instance Subsystem	BP_YoteiGameInstance owns all runtime state
Events	Event Dispatchers	No polling - everything publish / subscribe
Camera	CineCameraActor subclass	BP_DialogueCamera - repositioned per conversation
UI	UMG Widgets	Bound to dispatchers in Event Construct, never Tick

Architectural Principles

No polling. Every widget and system subscribes to an Event Dispatcher and only updates when something actually changes. Nothing reads state in Tick.
One source of truth. BP_YoteiGameInstance is the only place runtime state (active quests, completed quests, tracked quest) ever lives. Nothing caches a copy.
Data in tables, not assets. All quest and dialogue content lives in JSON-imported Data Tables. Adding a quest is adding a row - not creating a new Blueprint asset.
Additive, not ripping. Every system is designed so v2 features are additive - new nodes, new fields, new functions - nothing rewires what already works.

Foundation

The bootstrapping layer every other system depends on. UE5 requires an explicit chain that Unity handles implicitly - this is the piece with no Unity equivalent.

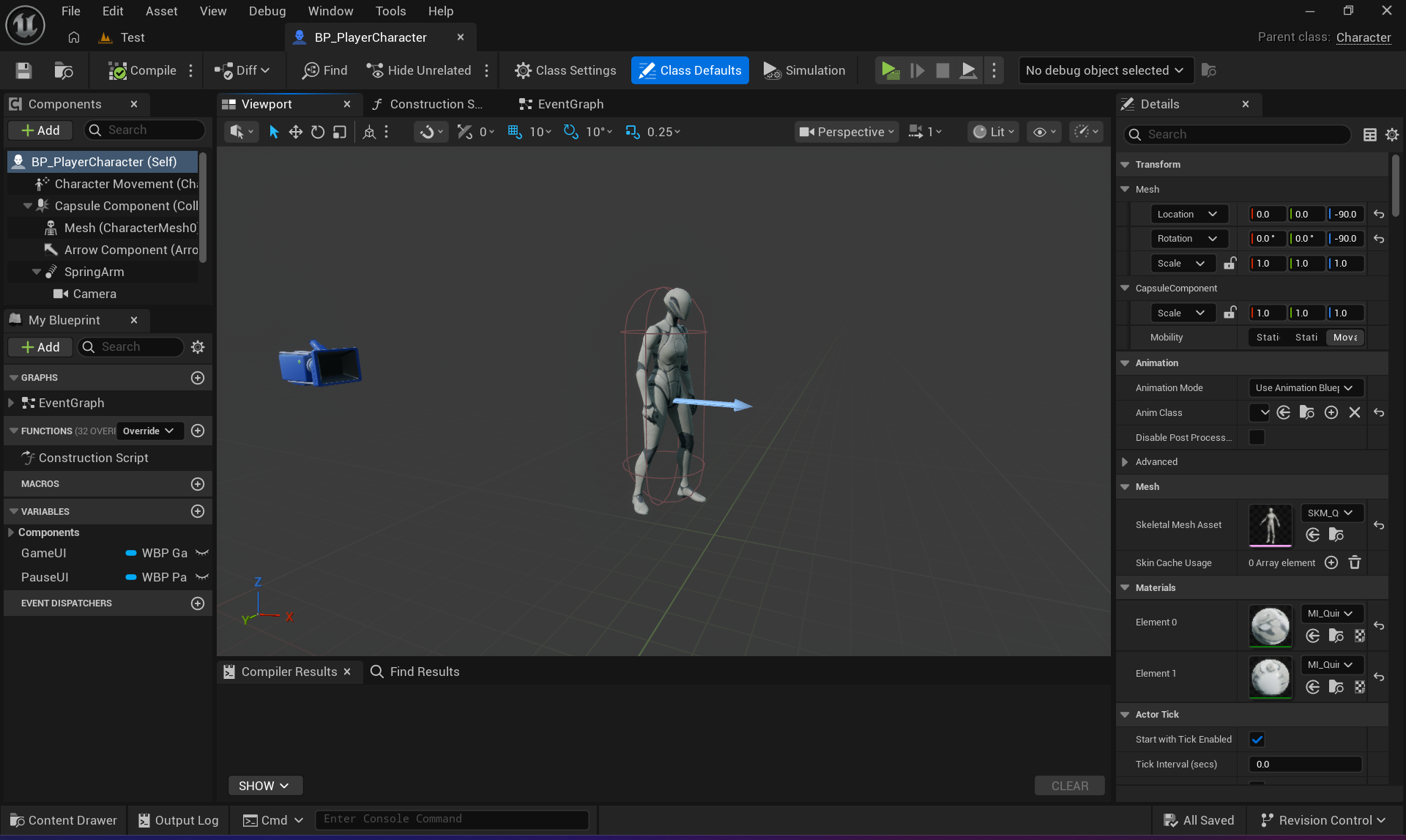

Bootstrap chain: BP_YoteiGameMode → sets Default Pawn Class = BP_PlayerCharacter and Player Controller Class = BP_PlayerController. Assigned in Level World Settings. Without this, nothing spawns and no input binds.

Enhanced Input Setup

All input goes through Enhanced Input. Legacy Input.GetAxis is not available in UE5.7.

Asset	Type	Action
IMC_Default	Input Mapping Context	Container - added in BP_PlayerCharacter BeginPlay
IA_Move	Input Action (Vector2D)	WASD movement
IA_Look	Input Action (Vector2D)	Mouse / stick camera
IA_Jump	Input Action (Bool)	Spacebar
IA_Interact	Input Action (Bool)	E key - triggers InteractionComponent
IA_ToggleMenu	Input Action (Bool)	Tab - wired in BP_PlayerController (not Character)

Health System

BP_HealthComponent is an Actor Component attached to BP_PlayerCharacter. It owns all health state and broadcasts changes via Event Dispatchers - nothing polls it.

Variables

Variable	Type	Default
MaxHealth	Integer	100
CurrentHealth	Integer	= MaxHealth
bIsDead	Bool	false

Event Dispatchers

OnDamaged(Amount: Int, CurrentHealth: Int) - fires on every TakeDamage call that lands
OnHealed(Amount: Int, CurrentHealth: Int) - fires on every Heal call
OnDeath - fires once when CurrentHealth reaches 0; bIsDead guard blocks all subsequent calls

WBP_HealthBar - progress bar updating in real time via OnDamaged dispatcher

Why dispatchers, not direct calls: WBP_HealthBar and the debug print logger both subscribe to OnDamaged independently. Neither knows the other exists - and neither knows about BP_HealthComponent's internals. Adding a third listener (damage popups, screen effects) costs zero changes to the component itself.

Interaction System

A four-piece system mirroring Unity's IInteractable pattern. The component sphere-traces each tick, finds the closest interactable, and drives the prompt widget - all without the interactable knowing who's looking at it.

Blueprint	Role

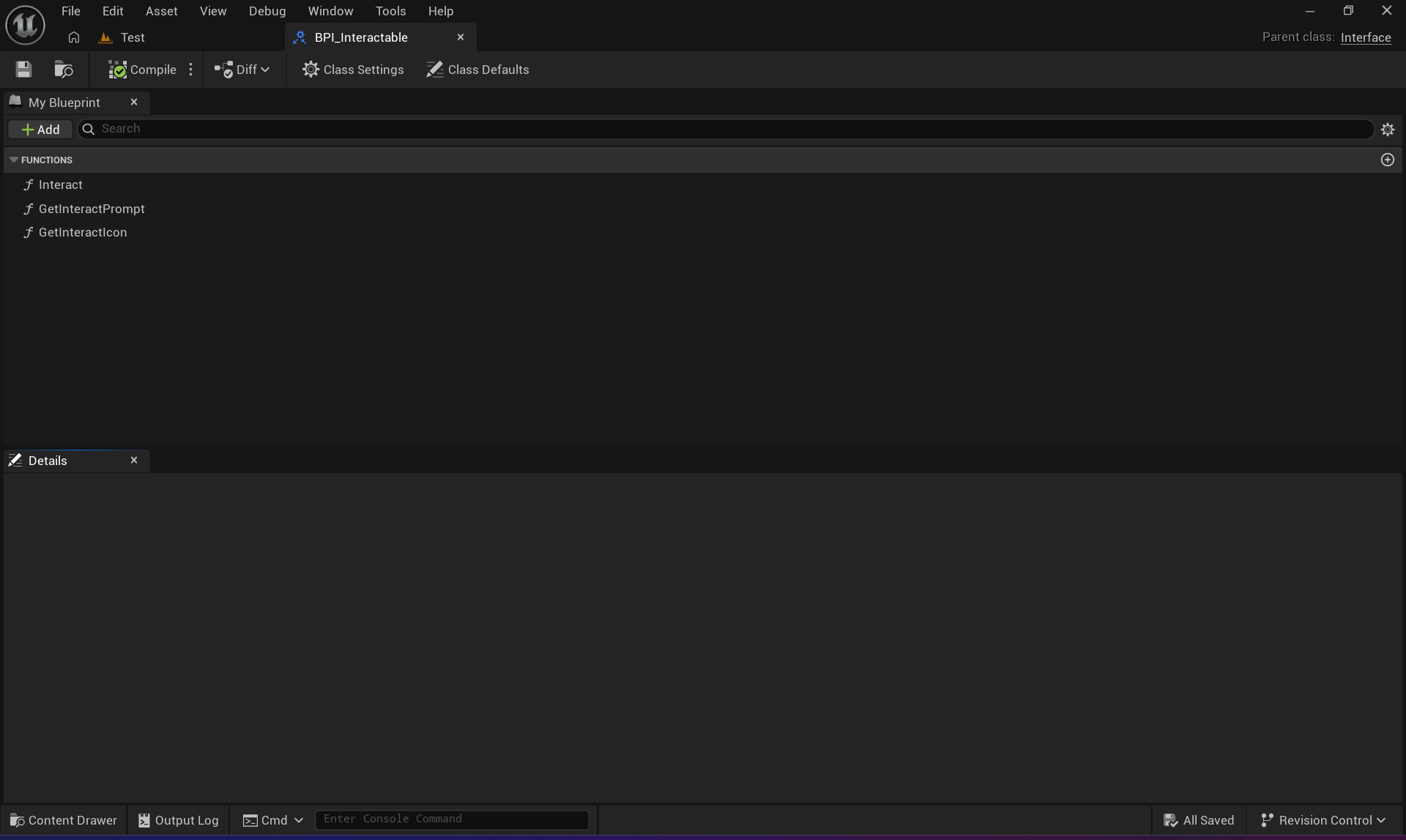

BPI_Interactable	Interface - Interact, GetPromptText, GetPromptIcon. Any actor implementing this is automatically discovered.
WBP_InteractionPrompt	Icon + text overlay. ShowPrompt / HidePrompt are the only public functions - no state knowledge.
BP_InteractionComponent	Actor Component on the player. Sphere trace each tick, tracks closest interactable, calls ShowPrompt / HidePrompt on the widget.
BP_TestInteractable	Placeholder actor implementing BPI_Interactable for end-to-end testing.

Interaction prompt shown when player enters sphere trace range

Typing rule: casting down to a specific type always needs an explicit Cast node, even when you know the object implements the interface. Blueprint can't guarantee type at compile time - this explains every type-mismatch fix in this system.

Quest Director

A weighted, catch-up quest director inspired by Yōtei's dynamic quest surfacing. Underleveled players get Side / Exploration draws; overleveled players get pulled toward Main Quests. The draw logic never hard-returns null - it re-rolls into the next available category.

Data Structure - S_QuestData

Field	Type	Purpose
Title	Text	Display name in Quest Log
Description	Text	Journal entry text
Category	E_QuestCategory	Main / Side / Exploration / Bounty - drives weighted draw
Region	E_Region	Which region the quest belongs to
QuestLine	Name	Groups quests under a named arc in the log
Prerequisites	Array<Name>	Row names that must be completed first
NextQuest	Name	Auto-unlocks this row on completion (chain quests)

DrawAndUnlockQuest - Weighted Algorithm

Input: CurrentRegion (E_Region) Output: DrawnQuest (BP_QuestData ref) or None 1. ComputeCategoryWeights(Region) → returns weight floats for Main/Side/Exploration/Bounty → underleveled = high Side weight; overleveled = high Main weight 2. RemainingCategories = [Main, Side, Exploration, Bounty] 3. WHILE RemainingCategories not empty: a. Sum weights of remaining categories → TotalWeight b. RandomRoll = Random(0, TotalWeight) c. Walk categories, accumulate RunningSum → first category where RunningSum >= RandomRoll = PickedCategory d. Pool = GetAvailableQuests(PickedCategory, Region) e. IF Pool not empty: → Draw random quest from Pool → UnlockQuest(DrawnQuest) → Broadcast OnQuestUnlocked → RETURN DrawnQuest f. ELSE: → Remove PickedCategory from RemainingCategories → continue loop 4. IF all categories exhausted → RETURN None (trigger handles gracefully - idle chatter, empty board, etc.)

System Demo

Demo: DrawAndUnlockQuest running across different PlayerPowerLevel values - showing category shift

Trigger Systems

Trigger	Mechanic	Status
Interrogation	Last enemy in squad → DrawAndUnlockQuest	Planned
Camp Visitor	Weighted NPC at rest point → dialogue → draw	Planned
Settler Quest Giver	NPC in settlement → interact → dialogue → draw	Planned
Bounty Board	Board actor → interact → draw (no dialogue)	Planned

Quest UI

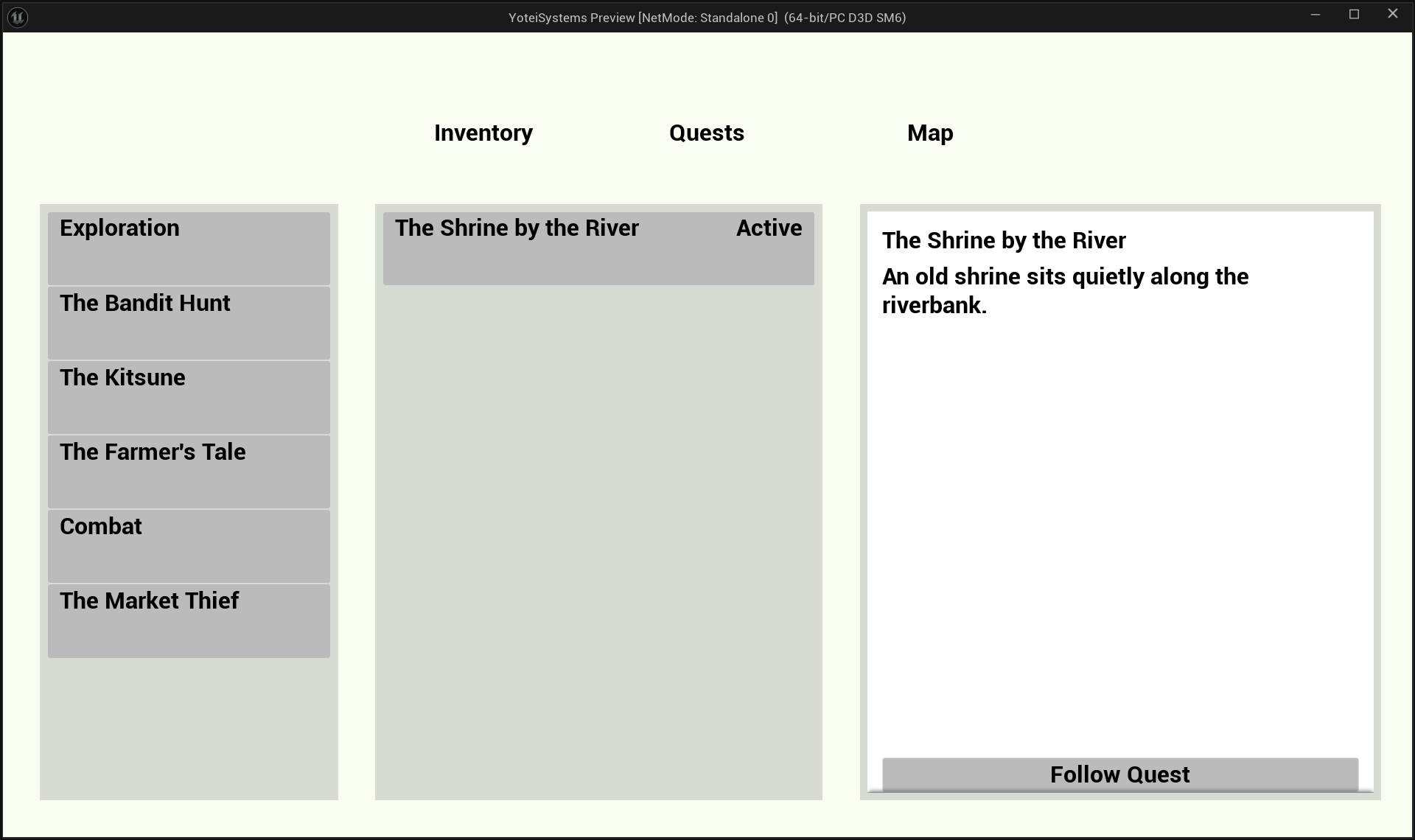

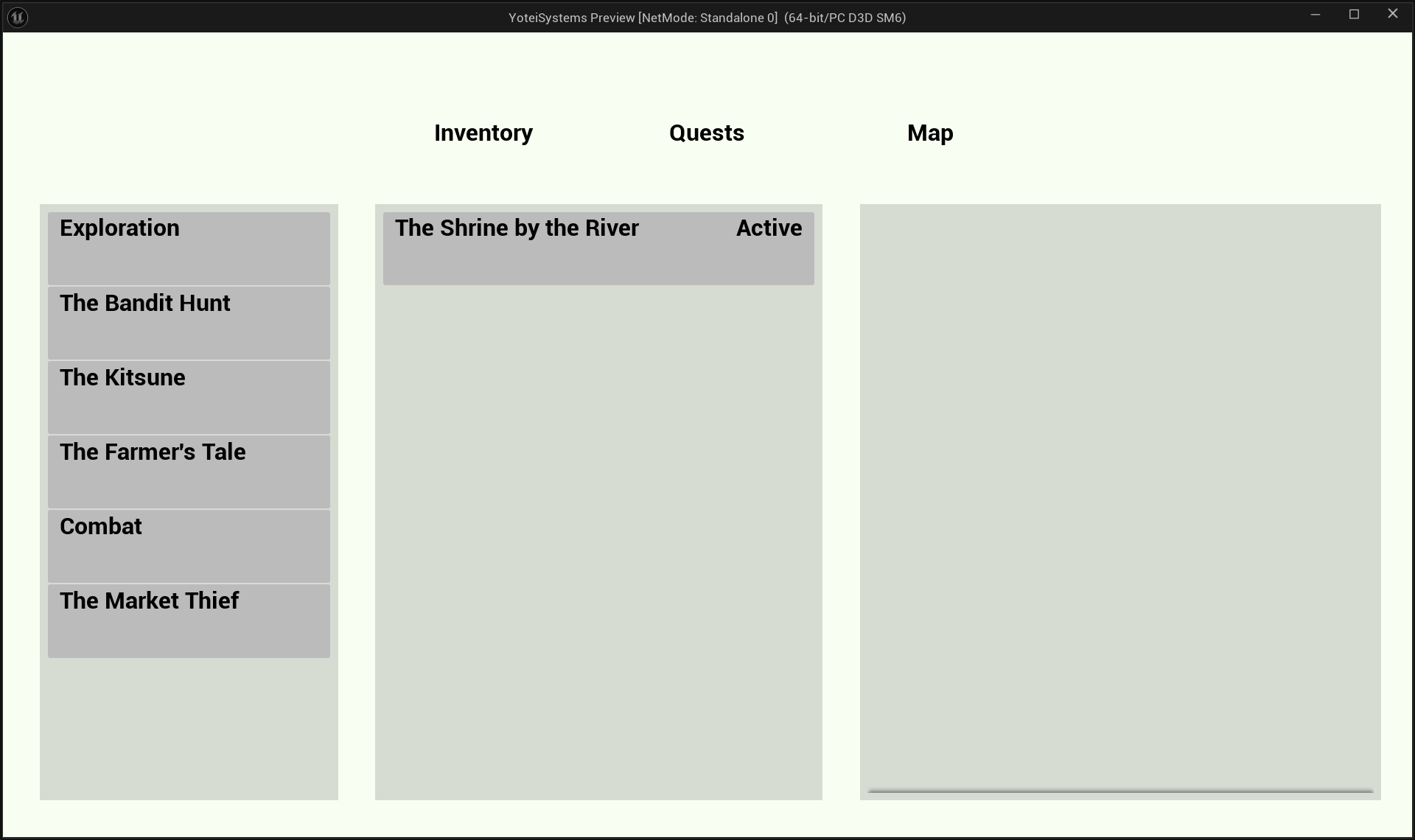

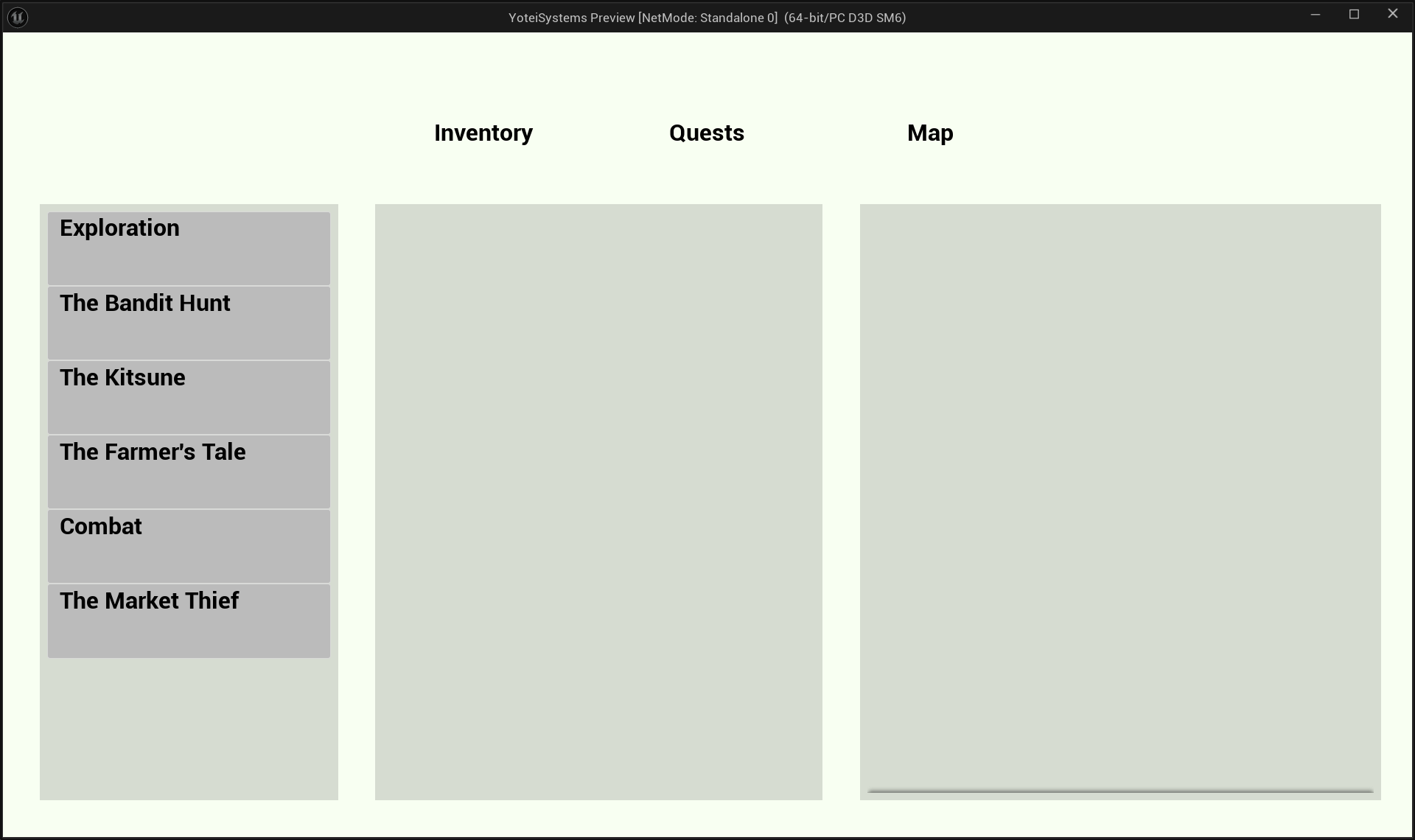

The Quest Log lives inside the Pause Menu and uses a three-box layout: questline sections (Box 1), quest entries for the selected section (Box 2), and a detail panel for the selected entry (Box 3).

Widget Hierarchy

WBP_PauseMenu └── Widget Switcher (Tab = 1: Quests) └── WBP_QuestTab ├── Box 1 - ScrollBox of WBP_QuestSection (one per questline) │ └── WBP_QuestSection → bubbles OnSectionClicked ├── Box 2 - ScrollBox of WBP_QuestEntry (one per quest in section) │ └── WBP_QuestEntry → bubbles OnEntryClicked └── Box 3 - Single WBP_QuestDetail (persistent, updated in place)

Design Rule - Discovered Only

Only discovered questlines appear in the log - matching Ghost of Tsushima / Yōtei's own Tales list. Showing "The Kitsune" before you've encountered it would spoil that the storyline exists at all. The log builds from BP_YoteiGameInstance's ActiveQuests and CompletedQuests arrays, grouped by QuestLine field.

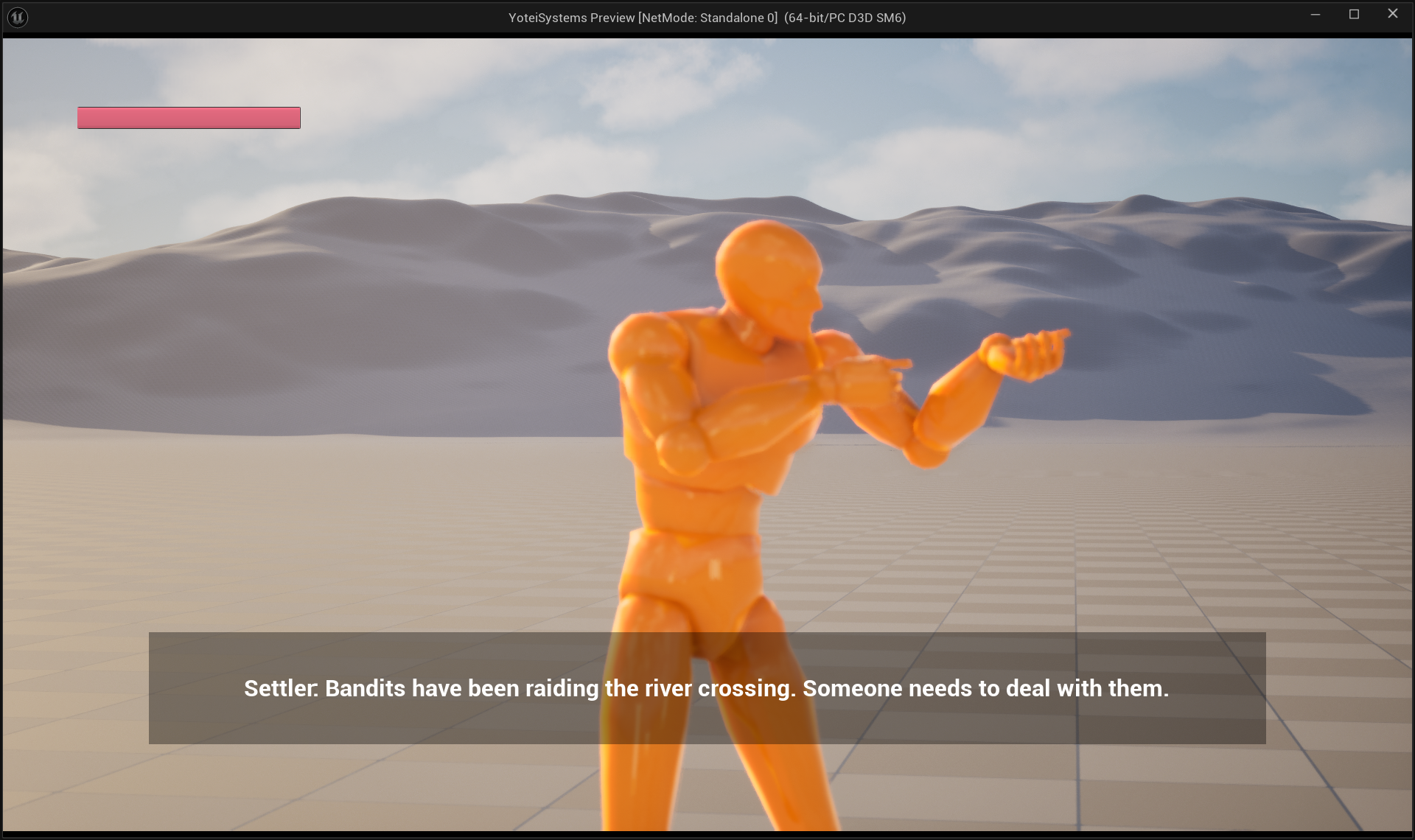

Dialogue System

A Yōtei-style auto-advance system. Lines play through on a timer derived from the voice clip duration - no Continue button. The only player input available is hold-to-skip the entire conversation.

Confirmed from research: Ghost of Yōtei's dialogue is fully automated - lines play on their own, you cannot advance line-by-line, and the only available input is hold-to-skip the whole cutscene. V1 matches that exactly.

Auto-Advance Timing

Duration = MAX(GetSoundDuration(VoiceClip), MinLineDuration) // MinLineDuration default: 2.5 s // Guarantees silent test rows hold long enough to read SetTimer(Duration) → fires AdvanceDialogue → reads NextLineID // If NextLineID is empty Name → EndDialogue // If NextLineID has a Choices array (v2) → show choice buttons instead

Two-Shot Camera

BP_DialogueCamera (a CineCameraActor subclass) is repositioned by ActivateDialogueCamera at the start of every conversation:

Midpoint = (SpeakerLocation + PlayerLocation) / 2 Offset = Midpoint + (Right Vector * SideDistance) + (Up * HeightOffset) Camera → SetActorLocation(Offset) Camera → LookAt(Midpoint)

System Demo

Demo: auto-advance dialogue running with two mannequins and the two-shot BP_DialogueCamera

Gotcha: WBP_DialogueBox must be created at level start in BeginPlay, not on first Interact. If it's created on Interact, its Bind Event won't be listening in time for that very first call - the first line silently fires and nothing shows.

All Widgets

Every widget is UMG-based, event-driven, and never polls in Tick. All state binds in Event Construct via Event Dispatchers.

Widget	Role	Binds To	Status
WBP_HealthBar	Screen-space progress bar	OnDamaged, OnHealed, OnDeath	✓
WBP_InteractionPrompt	Icon + text near crosshair	ShowPrompt / HidePrompt	✓
WBP_DialogueBox	Subtitle panel	OnLineChanged dispatcher	✓
WBP_PauseMenu	Tab-based pause overlay	IA_ToggleMenu via BP_PlayerController	✓
WBP_QuestTab	Quest Log inside Pause Menu	OnQuestUnlocked, OnQuestCompleted	✓
WBP_QuestSection	One questline group	Parent WBP_QuestTab	✓
WBP_QuestEntry	Single quest row	Parent WBP_QuestSection	✓
WBP_QuestDetail	Right-panel detail view	OnEntryClicked → SetQuestDetail	✓

Tab Key Fix - BP_PlayerController

The pause menu toggle was moved from BP_PlayerCharacter to BP_PlayerController. Character input is not guaranteed to keep processing once Set Game Paused is active. A PlayerController is.

Closing is handled by WBP_PauseMenu's own On Preview Key Down override - not through a Controller bool - which sidesteps the state-desync bug that caused Tab to get stuck only ever opening.

WBP_HealthBar

WBP_InteractionPrompt

WBP_PauseMenu (Tab)

Roadmap

Must-Do - Studio-Impressive

Cinematic Dialogue + voice files - first, because Camp and Settler both depend on it
Camp trigger - random NPC visitor at rest point → dialogue → quest draw
Settler trigger - NPC in settlement → interact → dialogue → draw
Bounty Board - board actor → interact → draw (no dialogue needed)
Combat system - melee core, parry, dodge
Enemy NPC - patrol AI, squad tracking, interrogation (last enemy → draw)
Ally recruitment - the payoff the Quest Director was built to deliver

Complimentary - Complete Game

Inventory system - prerequisite for different weapons
Map system - prerequisite for Follow Quest marker
Enemy types and camps - liberating nation mechanic
Horse riding
Boss encounters
Multiple weapon types

Dependency Order

Dialogue System ↓ Camp + Settler + Bounty Board (all need Dialogue) ↓ Combat System ↓ Enemy NPC (needs Combat) ↓ Ally Recruitment (needs Quest + Enemy + Dialogue)
